China Zhengzhou Plastic Industry Exibition 2015

This exibition is famouse as plastic industy, covering plastic raw material, plastic molds, plastic machinery, plastic package equipment. Its continous larger scale upgraded has great influence on our China middle west distributors .

Exibition time: April 16th to 18th 2015

Exibition address: Zhongyuan International Expo center Zhengzhou China

Lanson booth no.: A2-T4

Machines modesl: GT2-LS280B、GT2-LS120S

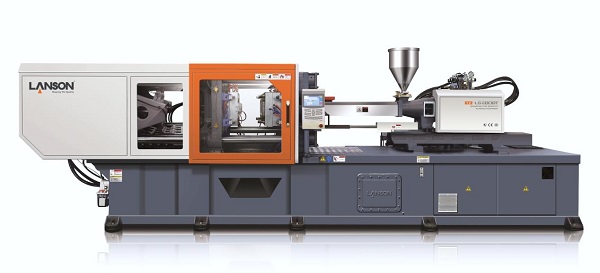

Machines modesl: GT2-LS280B

1.stable and reliable

Germany imported control system, higher precision, lower vibration, more stable and reliable

2.Faster response

Newly single cylinder injection unit, response speed faster 20%, accelerate from 0 to the max injection speed promoted by 45%

3.High injection speed

The max injection speed of this series reach 265mm/s, faster 40% than the second generation.

4.High rigidity

To satisfy thin wall package mold request, further strengthen platens rigidity

5.More accurate

Strenghten proportional mold opening/closing control, more accurate mold opening position

6.Energy saving

Energy saving servo system

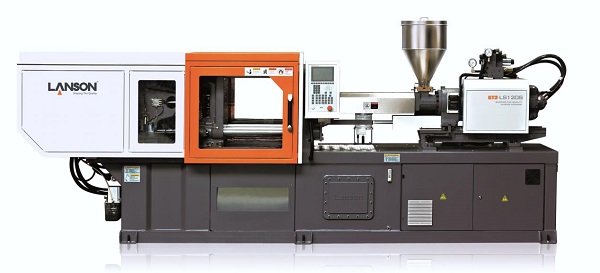

Machine model：GT2-LS120S

1、

Single injection cylinder

Injection cylinder, plasticizing motor and screw work together in one linear axis to improve injection pressure and speed, which is attain to precision injection molding with high precision and high speed.

2、

Injection unit linear guide way

Accurate, low friction, fast response, good repeatability and energy saving.

3、

Low resistance, energy saving injection system

Low resistance oil return design, reduce injection resistance, more energy saving

4、

Optional screw and barrel

Different screws and barrels to meet customer need

5、

Optimally designed fixed platen

The fixed platen employed the patented design of our company “arched molding board”, the stress will disperse when the fixed platen is under stress.  The service life of molding board is extended as a result of no stress concentration.  Strictly controlled distortion through finite element analysis.

6、

Widened toggle with long service life

To increase the service life of hinge pin and steel jacket, we increase the number of hinges, hinge pins and steel jackets shearing surface. Through widened hinge ears of moving platen, the stress received by molding board is dispersed equally and avoid stress concentration.

 .

7、

Accurate and timesaving gear mold adjusting device

Employed accurate gear mold adjusting device, the mold adjusting action is smooth and fast. It can also save the machine adjusting time after mold changing with automatic mold adjusting function.

8、

User friendly interface , easier operation

User friendly interface , easier operation.

9、

Servo energy-saving system

Small action inertia, fast response, energy saving and low noise.
